Stormtrooper Armor Model Technical Plans

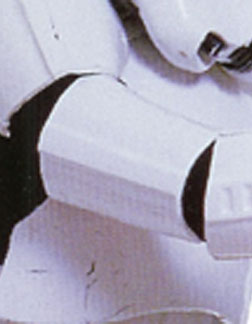

Biceps

The bicep is one of the easier parts to build and I would reccomend creating this one early on in your project to work out any bugs in your process.





Dimensions:

Length: 15 cm
Width: 12.5 - 15 cm
Height: 8 cm

Sculpting Material:

MDF Wood

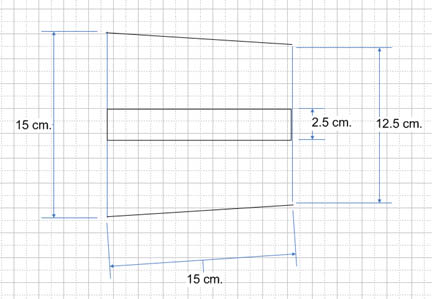

Technical Diagrams:









Special Sculpting Techniques: This piece of armor requires two separate models; One for the top and one for the bottom. The top piece contains a raised strip that is illustrated above. I created this piece by creating a wood cylinder that measured 15 X 15 cm. I then used various woodworking tools to work it into the dimensions illustrated above. I cut the cylindar in half and then added a wood strip for the final detail to one of the halves.
