Stormtrooper Armor Model Technical Plans

Butt

This one is a little tricky, but due to it's design, it can be trimmed to fit your particular body shape. Consider your comfort when sculpting this piece.





Dimensions:

Length: 26 cm.
Width: 40 cm.
Height: 15 cm.

Sculpting Material:

MDF Wood

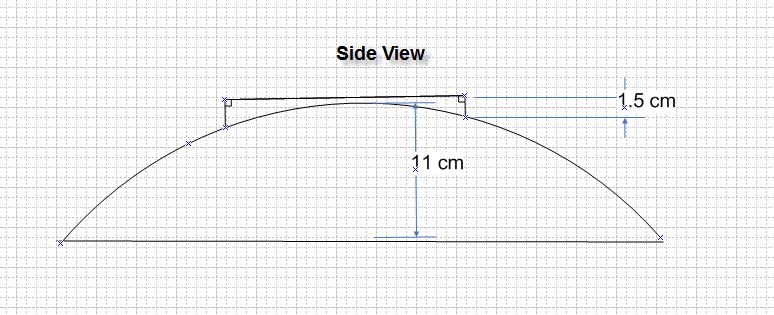

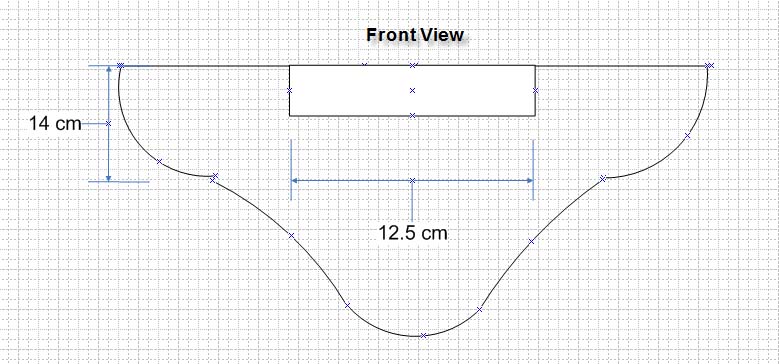

Technical Diagrams:








Special Sculpting Techniques: This piece should be created very similarly to the Cod Piece. Start by creating an arch structure using progressively smaller pieces of MDF wood. Leave the top flat enough to add the detail wide strip of wood. The wood chisel would be an excellent tool for this piece since you will need to remove a lot of wood to make room for the legs.
