Stormtrooper Armor Model Technical Plans

Left Knee Plate

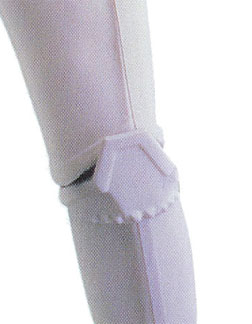

The knee plate is located just above the models left knee and is attached to the top of the left calf armor.





Dimensions:

Height: 1 cm

Sculpting Material:

MDF Wood

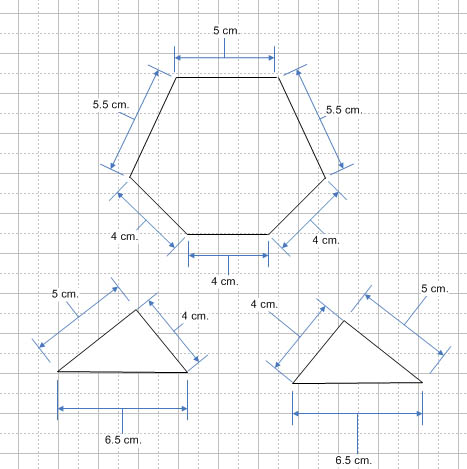

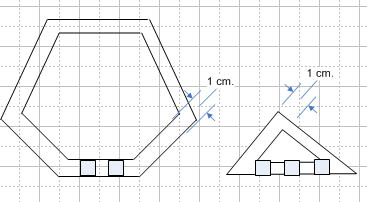

Technical Diagrams:





Special Sculpting Techniques: I made this piece out of a few pieces of 1 cm thick MDF. The ridges along the edges were created using strips of masking tape. You may also need to create some filler to fill the space between the mold and the morming table to prevent air hole pops or the mold from being crushed uner the pressure.
